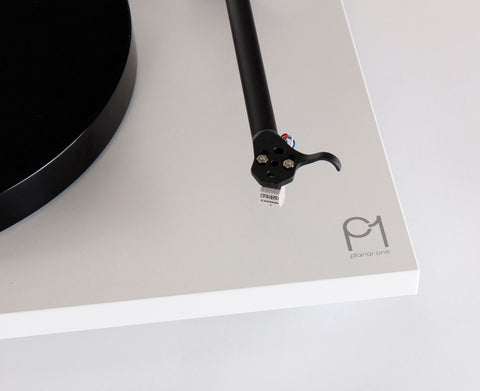

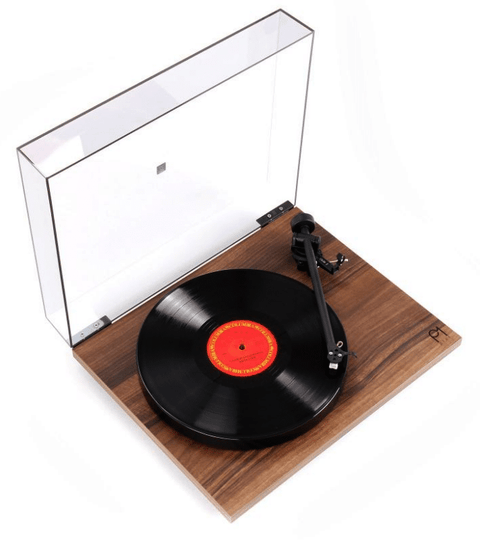

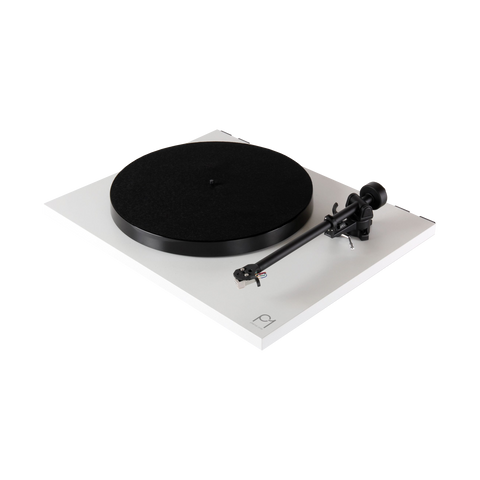

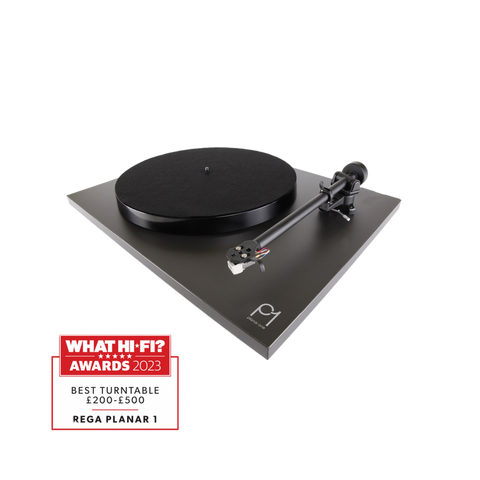

Rega Planar 1 Plus

Planar 1 Plus har inbyggt RIIA-steg. Bara att sätta in RCA kablarna direkt in i din förstärkare och spela.

EGENSKAPER

• Används endast med Rega PS1 350 mA power supply.
• 50 Hz: 24 V AC 0.142 mA maximum power consumption 3.4 W.
• 60 Hz: 24 V AC 0.129 mA maximum power consumption 3.1 W.
• Maximum Output Level (3.54 cm/s RMS 45 degrees CBS STR100 Band 6a and 7a): 370-410 mV
• Output Impedance: 1 kΩ
• Frequency Response (pre-amplifier only): 14 Hz (-3 dB Point) to 100 kHz (-0.6 dB Point)
• RIAA Accuracy (pre-amplifier only): (100 Hz to 20 kHz) ± 0.4 dB typically better than ± 0.25 dB
• Pre-amplifier Gain: 40 dB
• Pre-amplifier Input Loading: 47 kΩ in parallel with 220 pF
• Signal to Noise Ratio: -75 dB A-weighted ref maximum output.
• Power Requirements: 50 Hz 24 V AC 0.142 mA 3.4 W – 60 Hz 24 V AC 0.129 mA 3.1 W
• Dimensioner (stängt lock) H 11.7 x W 44.7 x D 36 cm
• Vikt 4.35kg
