En produkt från Rega Research
Rega The Brio
6 995 SEK
9 990 SEK

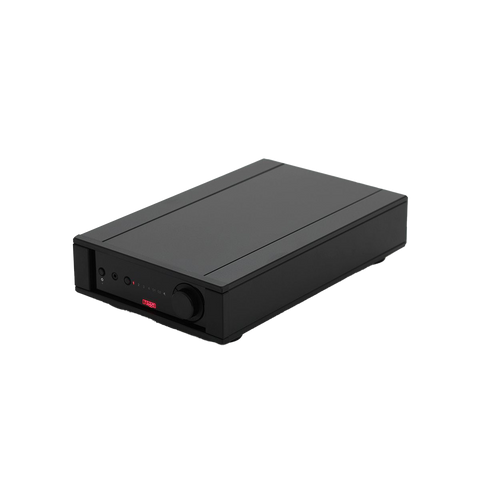

Helt nytt chassi som rymmer förbättrade kretsar och delar. Den är nu placerad i ett ett tvådelat aluminiumchassi som förstärker BRIO:s värmeavledningskapacitet och förbättrar Regas solida byggkvalitet och pålitlighet. Nya Brio har ett smart integrerat hörlursuttag speciellt utformat för att undvika störningar med ljudkretsen när den inte används.
Specifikationer
Input sensitivities for rated output level:
Input 1 (phono) input sensitivity = 2.1mV at 47KΩ in parallel with 220pF.
Maximum Input 1 (phono) input level = 100mV
Input 2-5 (line) input sensitivity = 210mV at 47kΩ
Maximum input 2-5 (line) input level = 10.25V
Power outputs at 230/115V supply voltage:
50 Watts RMS both channels driven into the rated load of 8Ω
58 Watts RMS one channel driven into the rated load of 8Ω
73 Watts RMS both channels driven into the rated load of 4Ω
93 Watts RMS one channel driven into the rated load of 4Ω
Continued high level use into 4Ω may cause the case to exceed 40° C above the ambient temperature.
Headphone output:
No load = 8V
32Ω = 1.8V
54Ω = 2.6V
300Ω = 5.9V
Source impedance = 109Ω
Power consumption:
195 Watts at 230V/220V/115V/100V into the rated load of 8Ω
Record output level:Record output level (with rated input levels) = 210Mv.
Record output impedance = 470Ω
Frequency response:
Phono 15Hz to 40KHz (-3dB Points) / 27Hz to 20.5KHz (-1dB Points)
RIAA accuracy (100Hz to 10KHz) ± 0.4dB typically better than ± 0.3dB
Line 12Hz (-1dB points) to 43KHz (-3dB points)
Remote control batteries included – 2 x AAA Alkaline.
Fuse ratings:
T2AL 250V - 230V/50Hz and 220V/60Hz
T3.15AL 250V - 115V/60Hz and 100V 50/60Hz
Dimensions:
345mm (D) -inc volume control x 216mm (W) x 78mm (H)
Weight:
5.1kg
